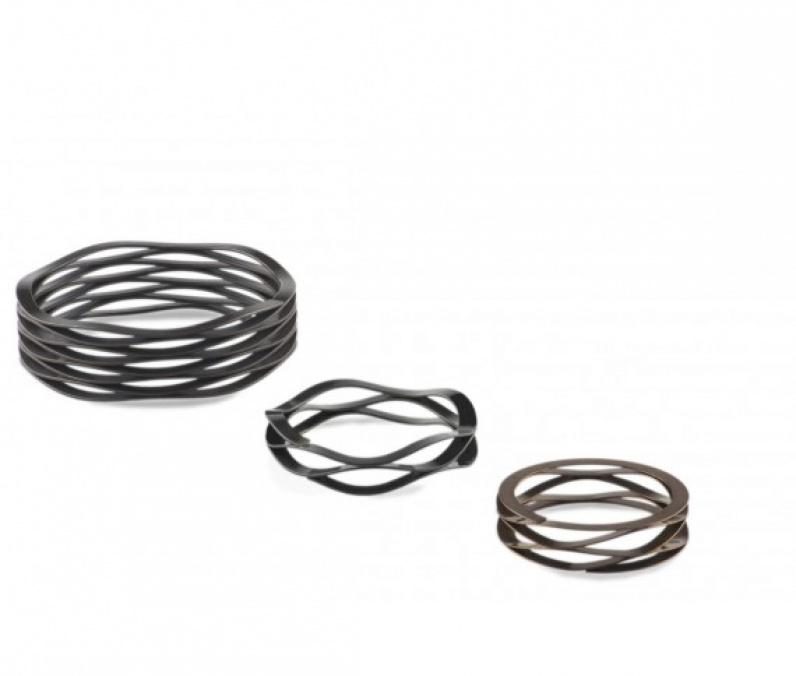

Ondufil Wave Springs RD0553S440060I68
Ref: RD0553S440060I68
In stock
Or select a predefined quantity
- 1 37,62 € /unit 37,62 € 45,14 € TTC
- 5 10,71 € /unit 53,55 € 64,26 € TTC
- 10 8,12 € /unit 81,20 € 97,44 € TTC
- 20 5,88 € /unit 117,60 € 141,12 € TTC
- 50 4,84 € /unit 242,00 € 290,40 € TTC
- 100 4,15 € /unit 415,00 € 498,00 € TTC
- 250 3,53 € /unit 882,50 € 1059,00 € TTC
- No minimum order
- Delivery within 1 to 3 weeks
- An advisor at your service
Technical specifications
- Material :Stainless steel 17-7 Ph 1.4568
- Diameter min (mm) :54.5
- Diameter max (mm) :45.5
- Section Fil ~ (mm) :4.0 x 0.6
- Number of waves :3.5
- Number of turns :4
- Free height ~ (mm) :9.3
- Spring rate ~ (N/mm) :22
- Shims ends (flat turns) :Please contact us
Values are given as an indication and are subject to change without notice.
