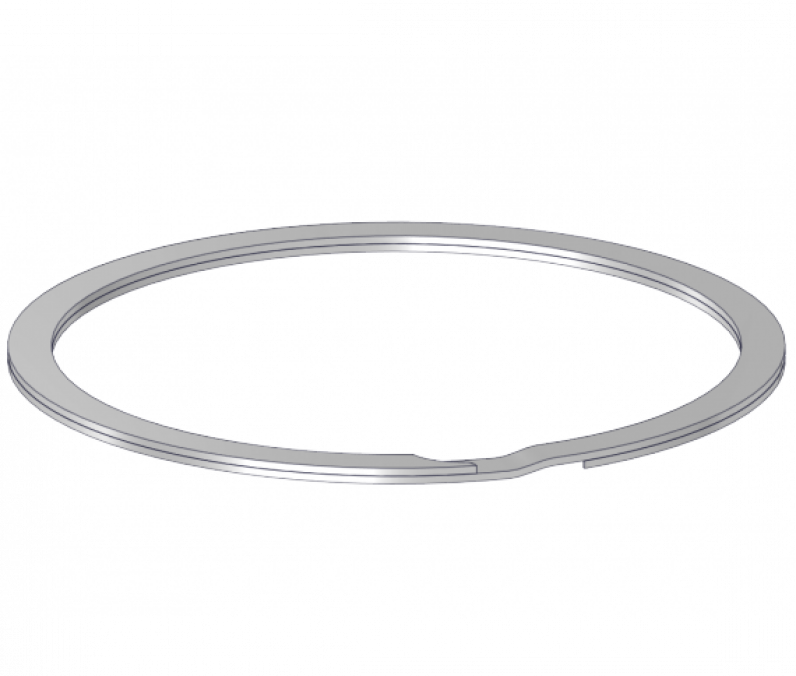

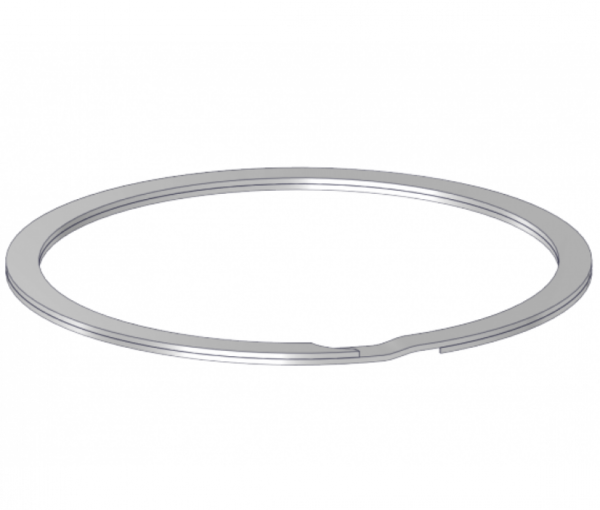

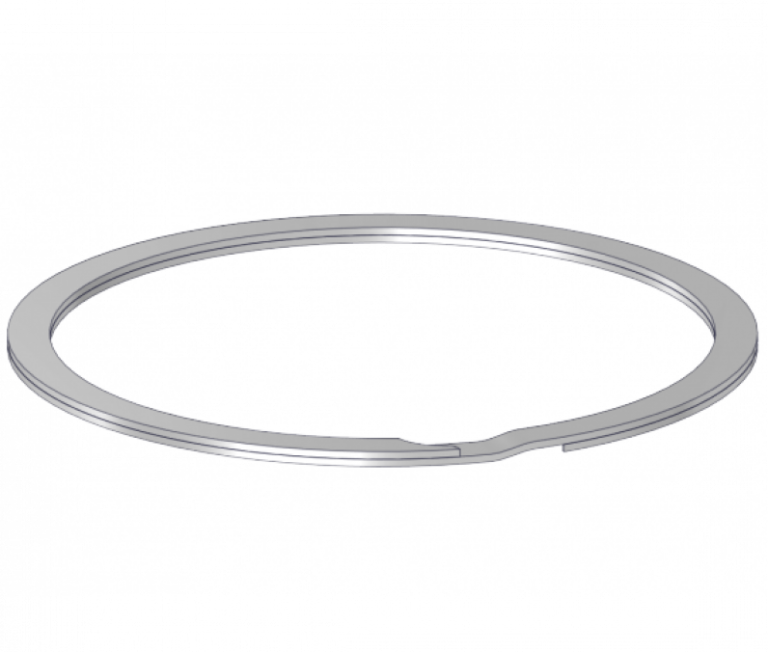

360 Retaining Rings AFE053233125I10
Ref: AFE053233125I10
On backorder
Available on back-order
Or select a predefined quantity
- 1 38,40 € /unit 38,40 € 46,08 € TTC
- 5 9,34 € /unit 46,70 € 56,04 € TTC
- 10 6,54 € /unit 65,40 € 78,48 € TTC
- 20 4,12 € /unit 82,40 € 98,88 € TTC
- 50 3,01 € /unit 150,50 € 180,60 € TTC
- 100 2,26 € /unit 226,00 € 271,20 € TTC
- 250 1,59 € /unit 397,50 € 477,00 € TTC
- No minimum order
- Delivery within 1 to 3 weeks
- An advisor at your service
Technical specifications
- Material :Stainless steel 1.4310
- Shaft diameter (mm) :53
- Inside diameter of the ring (mm) :50.305 ±0.315
- Width of the ring (mm) :3.25
- Thickness of the ring (mm) :1.25 ±0.08
- Groove diameter (mm) :51.15 ±0.15
- Groove width (mm) :1.42 - 1.52
- Groove resistance (kN) :24
- Shear strenght (kN) :60.23
Values are given as an indication and are subject to change without notice.
