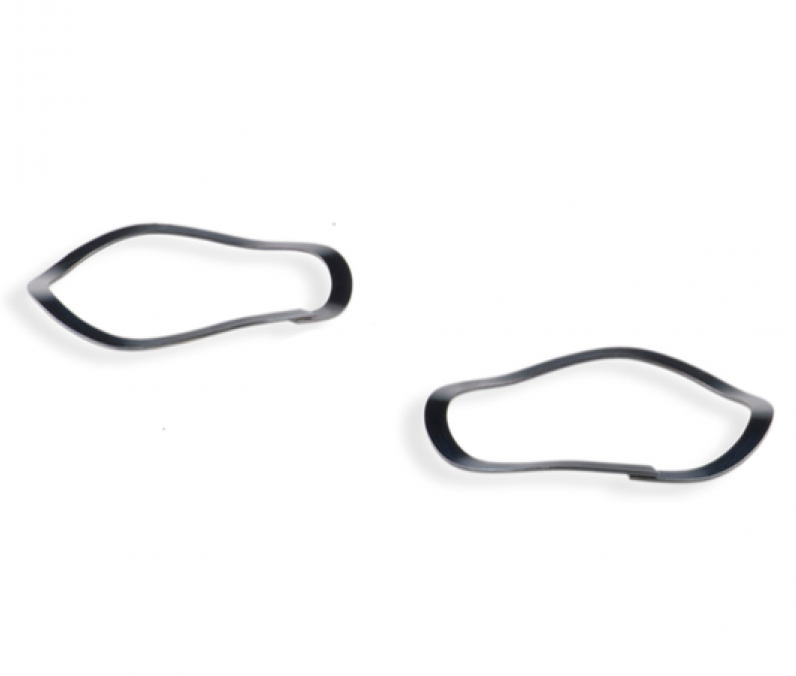

Ondufil Wave Springs OJP70S
Ref: RP0704J155070I68
In stock
Or select a predefined quantity
- 1 152,81 € /unit 152,81 € 183,37 € TTC
- 5 36,89 € /unit 184,45 € 221,34 € TTC
- 10 22,40 € /unit 224,00 € 268,80 € TTC
- 20 13,93 € /unit 278,60 € 334,32 € TTC
- 50 7,85 € /unit 392,50 € 471,00 € TTC
- 100 5,67 € /unit 567,00 € 680,40 € TTC
- 250 4,16 € /unit 1040,00 € 1248,00 € TTC
- No minimum order
- Delivery within 1 to 2 weeks
- An advisor at your service
Technical specifications
- Outer diameter of the bearing (mm) :70
- Material :Stainless steel 17-7 Ph 1.4568
- Diameter min (mm) :70
- Diameter max (mm) :58.4
- Section Fil ~ (mm) :5.5 x 0.70
- Number of waves :4
- Free height ~ (mm) :4.3
- Working height H1 (mm) :2.8
- Load P1 ±15% (N) :173
- Working height min :2 wire thickness
Values are given as an indication and are subject to change without notice.
