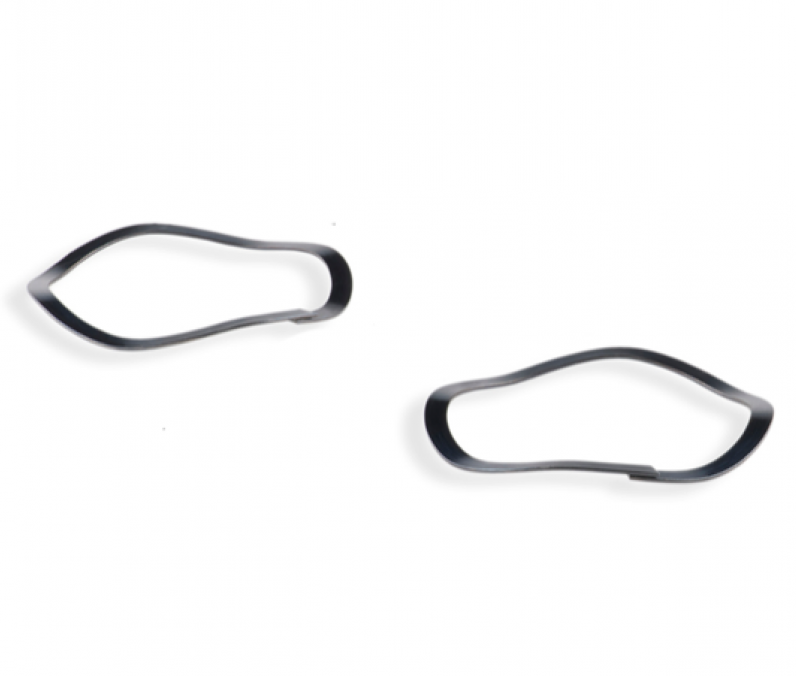

Ondufil Wave Springs OJ72S
Ref: RD0724J155070I68
On backorder
Available on back-order
Or select a predefined quantity
- 1 37,35 € /unit 37,35 € 44,82 € TTC
- 5 10,44 € /unit 52,20 € 62,64 € TTC
- 10 7,85 € /unit 78,50 € 94,20 € TTC
- 20 5,61 € /unit 112,20 € 134,64 € TTC
- 50 4,57 € /unit 228,50 € 274,20 € TTC
- 100 3,88 € /unit 388,00 € 465,60 € TTC
- 250 3,26 € /unit 815,00 € 978,00 € TTC
- No minimum order
- Delivery within 1 to 3 weeks
- An advisor at your service
Technical specifications
- Outer diameter of the bearing (mm) :72
- Material :Stainless steel 17-7 Ph 1.4568
- Standard references for the bearing mounting :6207 6306 6404
- Diameter min (mm) :72
- Diameter max (mm) :60.4
- Section Fil ~ (mm) :5.5 x 0.70
- Number of waves :4
- Free height ~ (mm) :4.6
- Working height H (mm) :2.8
- Spring rate ~ (N/mm) :116
- Working height min :2 wire thickness
Values are given as an indication and are subject to change without notice.
