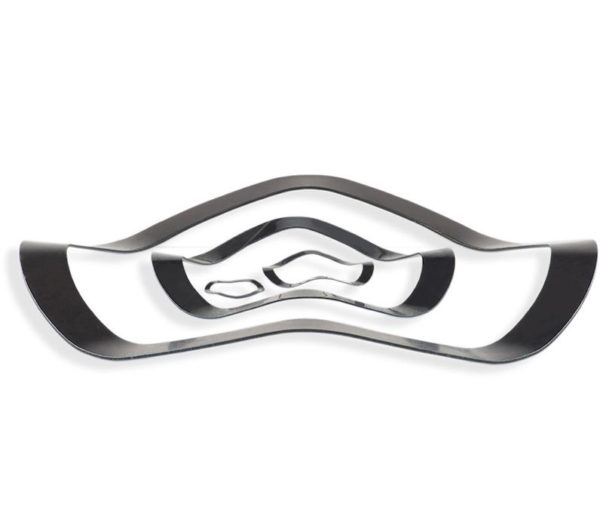

Borrelly Wave Washers C3P85
Ref: PDP085070080XT
In stock
Or select a predefined quantity
- 1 183,42 € /unit 183,42 € 220,10 € TTC
- 5 41,28 € /unit 206,40 € 247,68 € TTC
- 10 23,51 € /unit 235,10 € 282,12 € TTC
- 20 14,09 € /unit 281,80 € 338,16 € TTC
- 50 8,01 € /unit 400,50 € 480,60 € TTC
- 100 6,01 € /unit 601,00 € 721,20 € TTC
- 250 4,60 € /unit 1150,00 € 1380,00 € TTC
- No minimum order
- Delivery within 2 to 3 weeks
- An advisor at your service
Technical specifications
- Outer diameter of the bearing (mm) :85
- Material :Carbon Steel C75S 1.1248
- Standard references for the bearing mounting :6209 C3
- Diameter min (mm) :85
- Diameter max (mm) :67.6
- Material Thickness ±10% (mm) :0.8
- Number of waves :4
- Free height ~ (mm) :4.9
- Working height H (mm) :2.5
- Load ±15% (N) :550
Values are given as an indication and are subject to change without notice.
